Descrição
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Maximum Current: 20A 30A 40A
Model Number: T20 T30 T40
Origin: Mainland China
is_customized: Yes
20A 30A 40A 12V/24V Auto LCD Display Solar Charger Controller for Lighting System Solar Panel Battery Regulator T20 T30 T40
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
Please contact us for checking more details if needed.
Thank you.

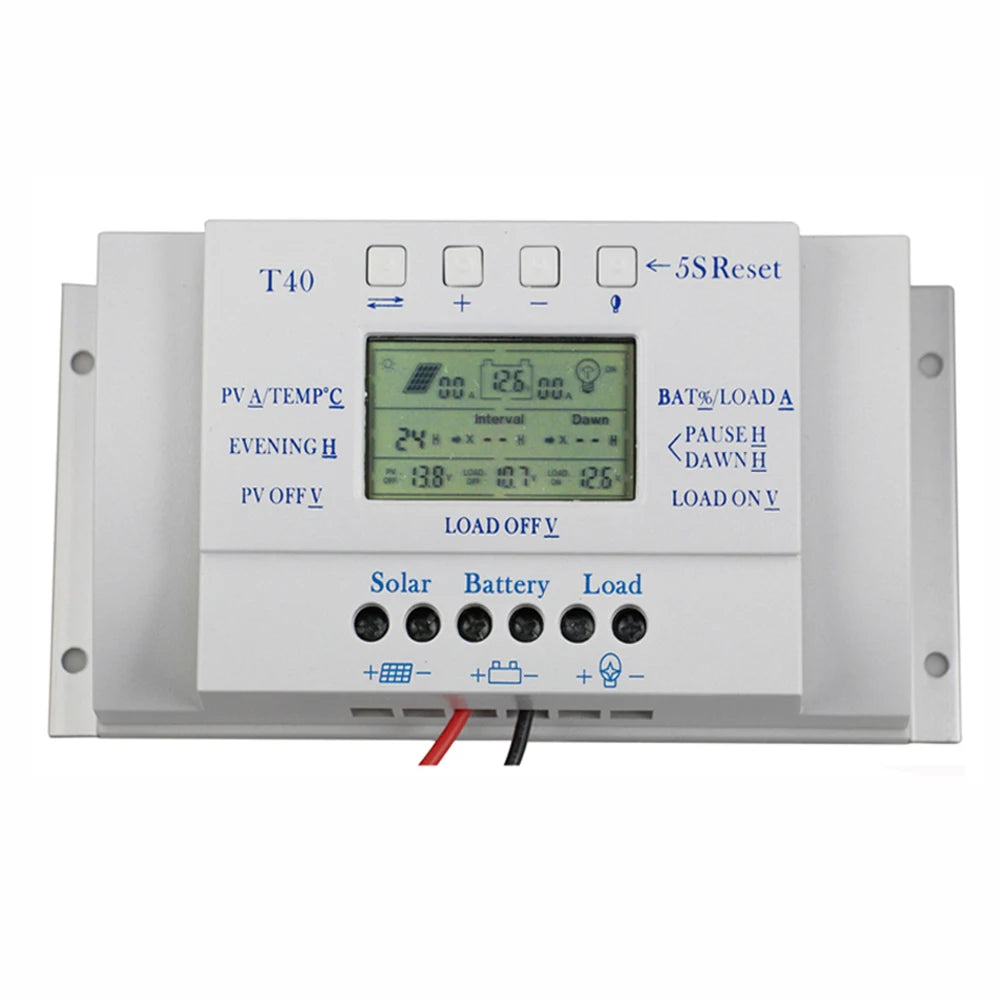

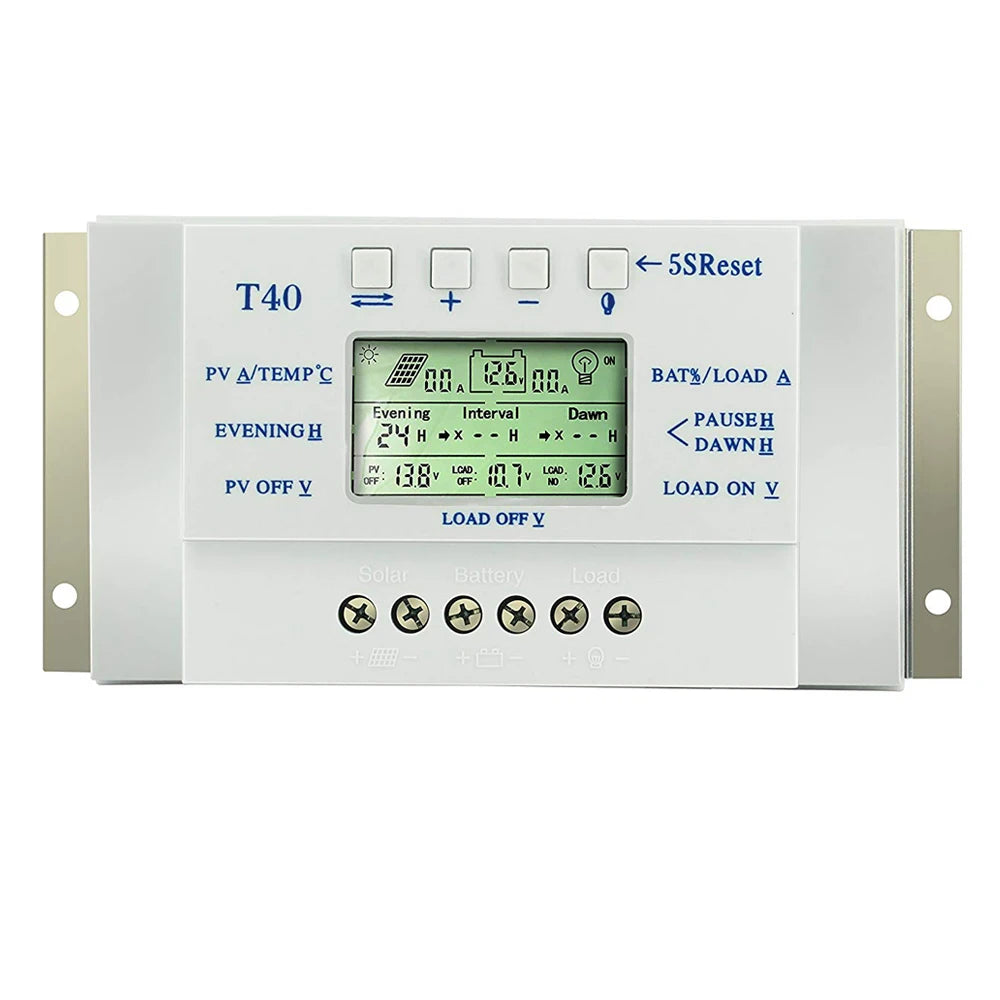

40A T40Solar Charge Controller Dual timer
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has a efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, but also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
LCD screen display |
Battery reverse discharge protection |
Easy operation interface |
Battery reverse polarity protection |
MPPT+ PWM charging mode |
Battery under voltage protection |
Parameter user can reset Overload |
Short-circuit protection |
A key to restore the factory settings |
USB 5V charging ( 500mA(White) 1500mA(Sliver) for mobile phone |
A key to open and close the load |
Automatic temperature compensation function |

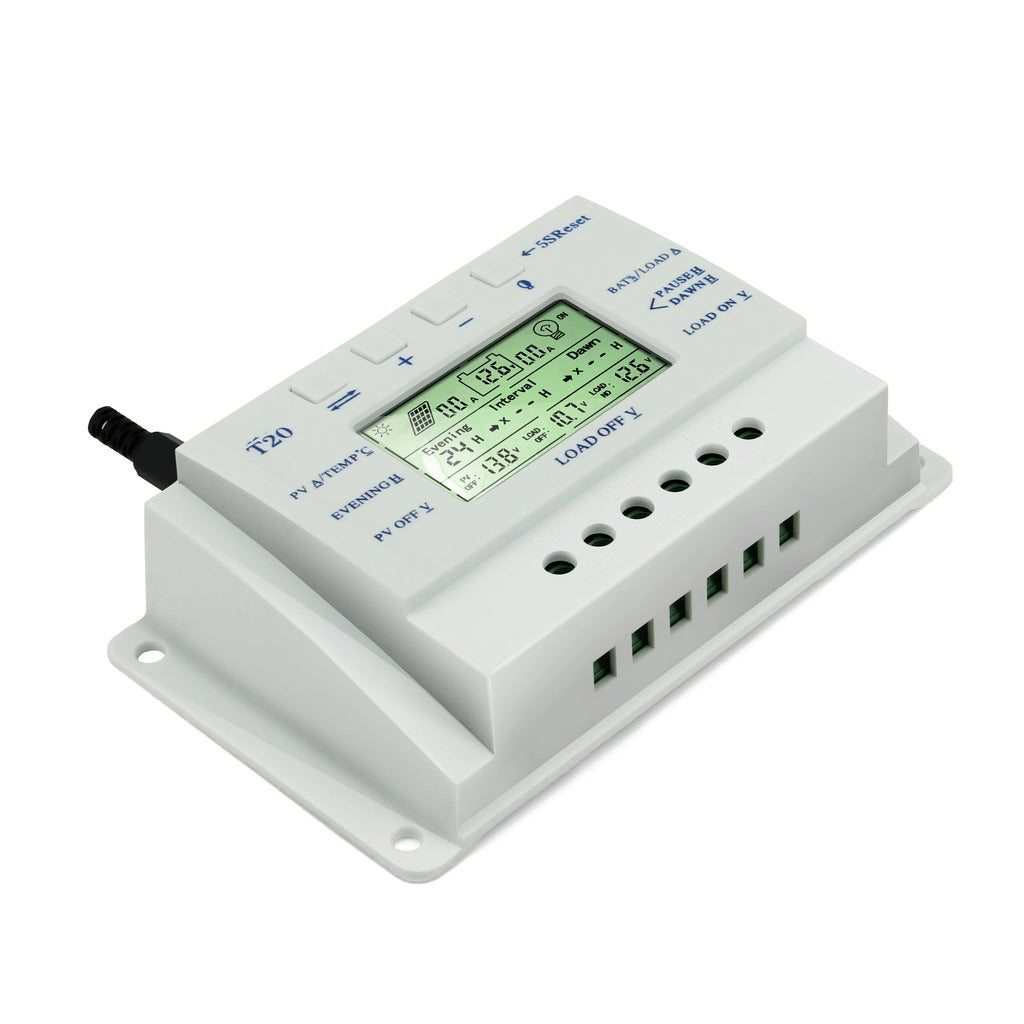

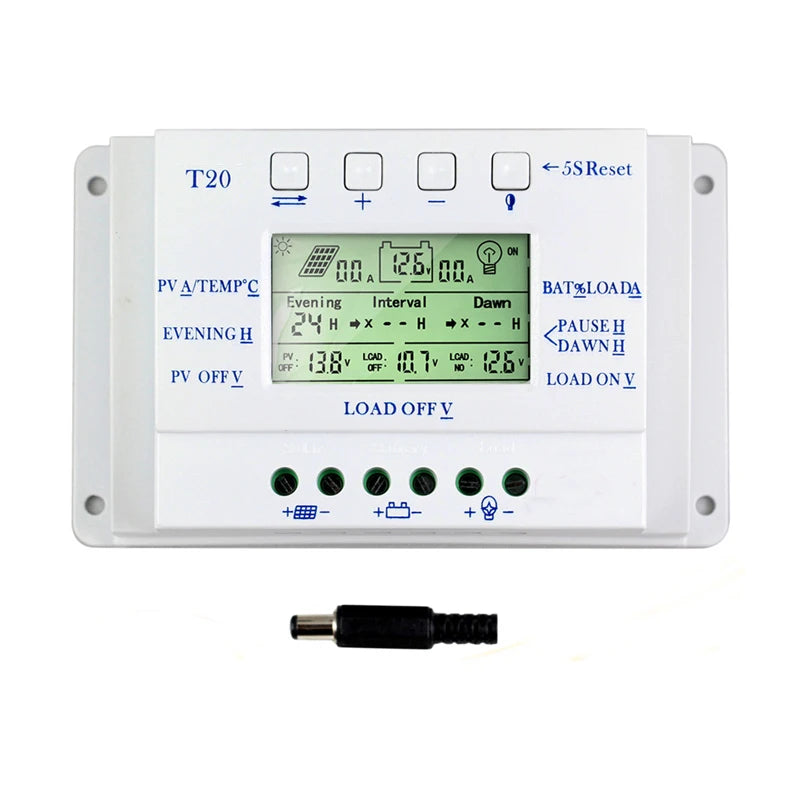

T20 20A Solar Charge Controller Dual timer
This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time
Dual Timer function
Specification
Parameters / Model |
T10 |
T20 |
T30 |
T40 |
||
Maximum power current |
12A |
20A |
30A |
40A |
||
Installation Lin(mm2) |
4mm2 |
8mm2 |
10mm2 |
12mm2 |
||
Installation Line(AWG) |
10(AWG) |
8(AWG) |
7(AWG) |
6(AWG) |
||
Weight |
280g |
300g |
475g |
480g |
||
Dimensions |
143×89×46(mm) |
187*97*61(mm) |
||||
System load loss |
≤13mA |
|||||
Loop Buck |
≤100mV |
|||||
Battery float voltage |
13.8V(12V system)/27.6V(24V system) |
|||||
Battery (under voltage) protection |
10.6V(12V system)/21.2V(24V system) |
|||||
Battery (under voltage) recovery voltage |
12.6V(12V system)/25.2V(24V system) |
|||||
Charge mode |
MPPT+PWM MODE |
|||||
Operating Temperature |
-10°C~60°C |
|||||
Storage Temperature |
-30°C~70°C |
|||||
Humidity requirements |
≤90%, No condensation |
|||||
Temperature compensation |
-4mV/Cell/°C |
|||||
Temperature Probe (built components) |
NTC 100K thermistats |
|||||
Maximum open circuit voltage of the solar panel |
18V-24V(12V system)36V-48V(24V system) |
|||||
Solar panels maximum open circuit voltage (V) |
≤48V |
|||||
(Cases) 12V system standard configuration
